Preservation of pancreatic endocrine and peri-islet exocrine capillary networks in type 2 diabetes
Alex M. Tollefson, Frank R. Marsico, Manami Hara
Alex M. Tollefson, Frank R. Marsico, Manami Hara
View: Text | PDF
Research Article Endocrinology Vascular biology

Preservation of pancreatic endocrine and peri-islet exocrine capillary networks in type 2 diabetes

  • Text
  • PDF
Abstract

Chronic hyperglycemia induces microvascular complications in patients with type 2 diabetes (T2D), particularly diabetic retinopathy, nephropathy, and neuropathy. We revisited the pancreatic vasculature to reexamine such damage in 3D. Using thick pancreatic tissue slices, we analyzed volumetric intraislet capillary density (vICD) and peri-islet volumetric exocrine capillary density (vECD) as well as interface capillary counts along the islet periphery to quantify vascular integration between the islets and surrounding acinar cells. Contrary to the previous reports, vICD was not homogeneous but highly heterogeneous across the five species studied (human, monkey, pig, ferret, and mouse), especially in smaller islets. vICD became less variable with increasing islet size, converging at approximately 20%. With this foundation of islet vascularization, pancreatic tissues from non-diabetic and T2D subjects consisting of 8 age- and sex-matched pairs (age range of 35–65 years with various duration: 0–15 years) were examined. Strikingly, no significant differences in microvascular density were found; mean vICD and mean vECD were nearly equivalent between the groups. Capillary integration with respect to islet size was comparable. These findings suggest that integrated pancreatic blood flow with robust crosstalk between the endocrine and exocrine pancreas may facilitate microvascular preservation in T2D via local distribution of insulin.

Authors

Alex M. Tollefson, Frank R. Marsico, Manami Hara

×

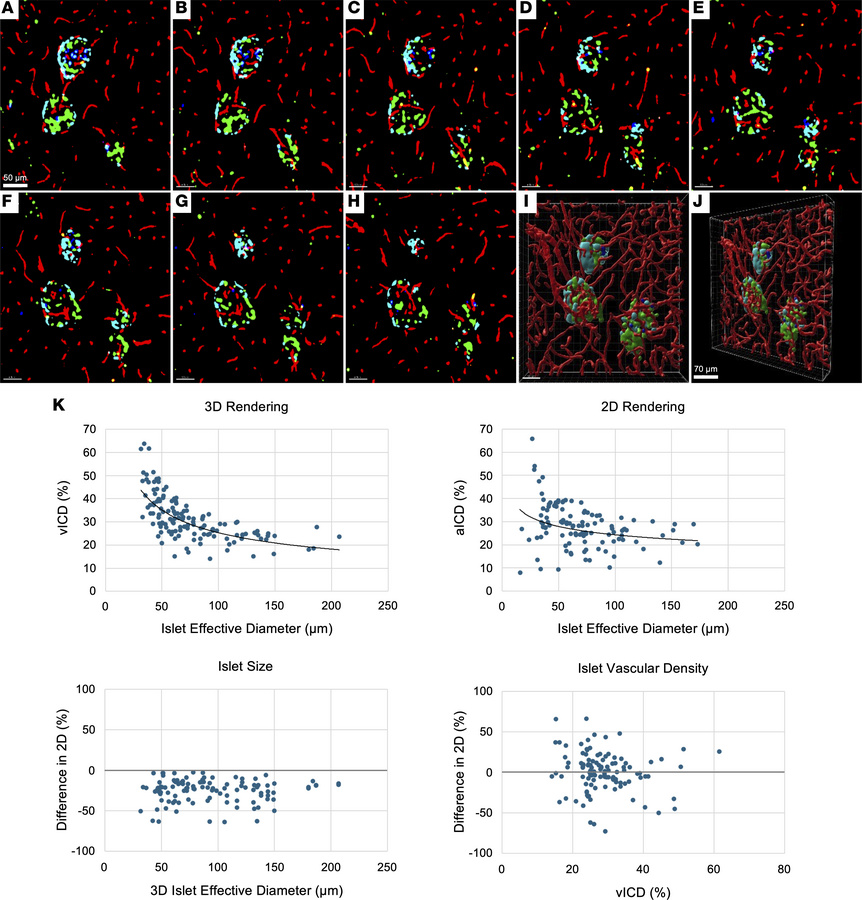

Figure 1

Approaches to visualizing and analyzing islet microvasculature.

Options: View larger image (or click on image) Download as PowerPoint
Approaches to visualizing and analyzing islet microvasculature.
(A–H) 2D...
(A–H) 2D versus 3D analysis. A series of 2D optical panels of human pancreatic tissue: insulin (green), glucagon (cyan), somatostatin (blue), and CD31 (red). A part of a stack of sequential images (out of a total of 25 optical panels with 5 μm increments) is shown. (I and J) 3D reconstruction of a stack of 2D images. Scale bars: 50 μm, except the last panel, 70 μm. (K) Comparison of data acquired from the same islet sample (~120 islets) using 3D and single-slice images (8 μm) to simulate 2D. Top: 3D image more clearly reveals the relationship between islet size and islet vascularization. Bottom left: Comparison of islet effective diameter between simulated 2D islets and their 3D counterparts, indicating that 2D consistently underestimates islet effective diameter. Bottom right: Comparison of vICD in simulated 2D islets versus 3D indicates inaccuracy in measurement of intraislet vascular density when the full vascular network is omitted.
