Bispecific targeting of CHI3L1 and PD-1 as a therapeutic strategy for pulmonary fibrosis
Han-Seok Jeong, Takayuki Sadanaga, Joyce H. Lee, Suchitra Kamle, Bing Ma, Yang Zhou, Sung Jae Shin, Jack A. Elias, Chun Geun Lee
Han-Seok Jeong, Takayuki Sadanaga, Joyce H. Lee, Suchitra Kamle, Bing Ma, Yang Zhou, Sung Jae Shin, Jack A. Elias, Chun Geun Lee
View: Text | PDF
Research Article Immunology Pulmonology

Bispecific targeting of CHI3L1 and PD-1 as a therapeutic strategy for pulmonary fibrosis

  • Text
  • PDF
Abstract

CHI3L1, a chitinase-like protein, is implicated in pulmonary fibrosis, yet its mechanisms are incompletely understood. We demonstrated that CHI3L1 coordinates profibrotic macrophage activation and invasive myofibroblast differentiation, and their crosstalk. In vitro, CHI3L1 drove M2-like macrophage polarization with increased CD163, CD206, and PD-L1, and amplified TGF-β1–induced fibroblast responses, including myofibroblast transformation, migration, and invasion. Mechanistically, CHI3L1 enhanced TGF-β1 signaling through SMAD, AKT, and ERK pathways, and PD-L1 was required for CHI3L1/TGF-β1–driven myofibroblast transformation. Coculture studies further demonstrated the ability of CHI3L1 to induce profibrotic macrophage activation that enhanced myofibroblast transformation mediated via a CD44/PD-L1 axis. In vivo, following bleomycin challenge, CHI3L1-transgenic mice exhibited increased PD-L1+ M2 macrophages, PD-L1+PDGFRα+ fibroblasts, and PD-1+ immune cells compared with WT controls. Therapeutically, combined anti-CHI3L1 and anti-PD-1 antibodies, or a bispecific anti-CHI3L1–anti-PD-1 antibody, produced greater antifibrotic efficacy than monotherapy. These findings demonstrate crosstalk between CHI3L1 and the PD-1/PD-L1 pathway that promotes profibrotic macrophage activation and invasive fibroblast differentiation and support dual targeting of CHI3L1 and PD-1/PD-L1 as a promising therapeutic strategy for pulmonary fibrosis.

Authors

Han-Seok Jeong, Takayuki Sadanaga, Joyce H. Lee, Suchitra Kamle, Bing Ma, Yang Zhou, Sung Jae Shin, Jack A. Elias, Chun Geun Lee

×

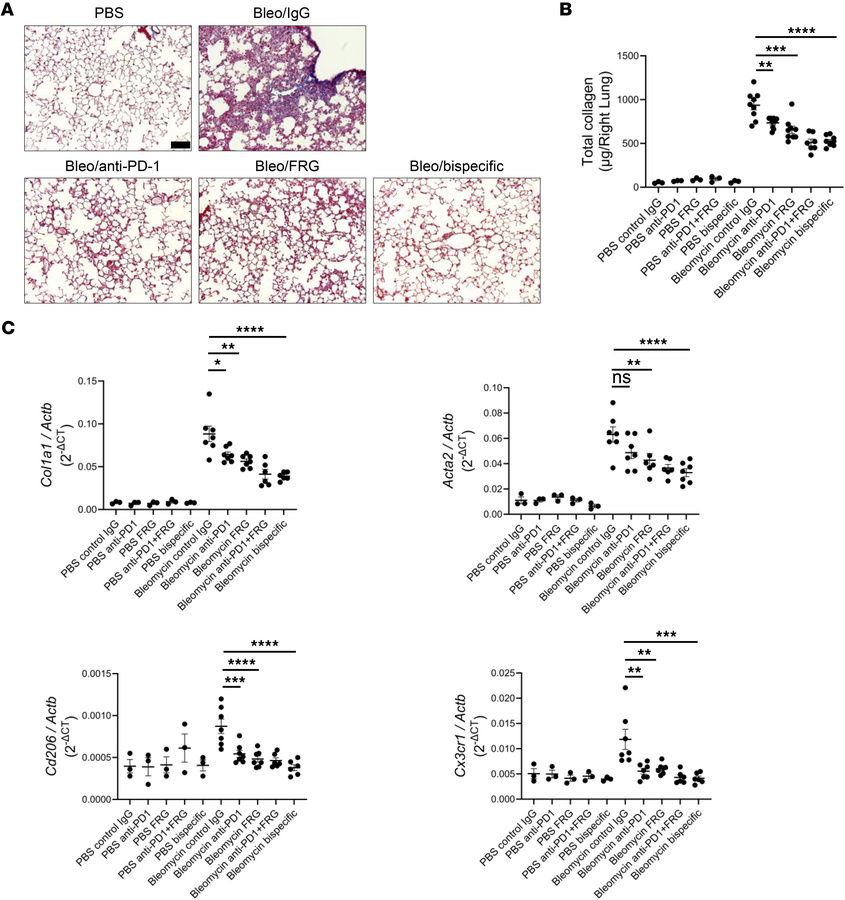

Figure 7

Anti-CHI3L1, anti-PD-1, and bispecific antibodies attenuate bleomycin-induced lung fibrosis.

Options: View larger image (or click on image) Download as PowerPoint
Anti-CHI3L1, anti-PD-1, and bispecific antibodies attenuate bleomycin-in...
WT mice were challenged intratracheally with PBS or bleomycin and subsequently treated with FRG, anti-PD-1 antibody, or a bispecific anti-CHI3L1×PD-1 antibody, either individually or in combination. (A) Histological assessment and Masson’s trichrome staining of lung tissues from bleomycin-challenged mice treated with FRG, anti-PD-1, or the bispecific antibody. Scale bar: 100 μm. (B) Quantification of total lung collagen content. (C) qRT-PCR of the expression of fibrotic markers (Col1a1, Acta2) and profibrotic macrophage markers (Cd206, Cx3cr1). The values in B and C are mean ± SEM. *P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001 by 1-way ANOVA followed by Šídák’s multiple-comparison test.
