Bispecific targeting of CHI3L1 and PD-1 as a therapeutic strategy for pulmonary fibrosis
Han-Seok Jeong, Takayuki Sadanaga, Joyce H. Lee, Suchitra Kamle, Bing Ma, Yang Zhou, Sung Jae Shin, Jack A. Elias, Chun Geun Lee
Han-Seok Jeong, Takayuki Sadanaga, Joyce H. Lee, Suchitra Kamle, Bing Ma, Yang Zhou, Sung Jae Shin, Jack A. Elias, Chun Geun Lee
View: Text | PDF
Research Article Immunology Pulmonology

Bispecific targeting of CHI3L1 and PD-1 as a therapeutic strategy for pulmonary fibrosis

  • Text
  • PDF
Abstract

CHI3L1, a chitinase-like protein, is implicated in pulmonary fibrosis, yet its mechanisms are incompletely understood. We demonstrated that CHI3L1 coordinates profibrotic macrophage activation and invasive myofibroblast differentiation, and their crosstalk. In vitro, CHI3L1 drove M2-like macrophage polarization with increased CD163, CD206, and PD-L1, and amplified TGF-β1–induced fibroblast responses, including myofibroblast transformation, migration, and invasion. Mechanistically, CHI3L1 enhanced TGF-β1 signaling through SMAD, AKT, and ERK pathways, and PD-L1 was required for CHI3L1/TGF-β1–driven myofibroblast transformation. Coculture studies further demonstrated the ability of CHI3L1 to induce profibrotic macrophage activation that enhanced myofibroblast transformation mediated via a CD44/PD-L1 axis. In vivo, following bleomycin challenge, CHI3L1-transgenic mice exhibited increased PD-L1+ M2 macrophages, PD-L1+PDGFRα+ fibroblasts, and PD-1+ immune cells compared with WT controls. Therapeutically, combined anti-CHI3L1 and anti-PD-1 antibodies, or a bispecific anti-CHI3L1–anti-PD-1 antibody, produced greater antifibrotic efficacy than monotherapy. These findings demonstrate crosstalk between CHI3L1 and the PD-1/PD-L1 pathway that promotes profibrotic macrophage activation and invasive fibroblast differentiation and support dual targeting of CHI3L1 and PD-1/PD-L1 as a promising therapeutic strategy for pulmonary fibrosis.

Authors

Han-Seok Jeong, Takayuki Sadanaga, Joyce H. Lee, Suchitra Kamle, Bing Ma, Yang Zhou, Sung Jae Shin, Jack A. Elias, Chun Geun Lee

×

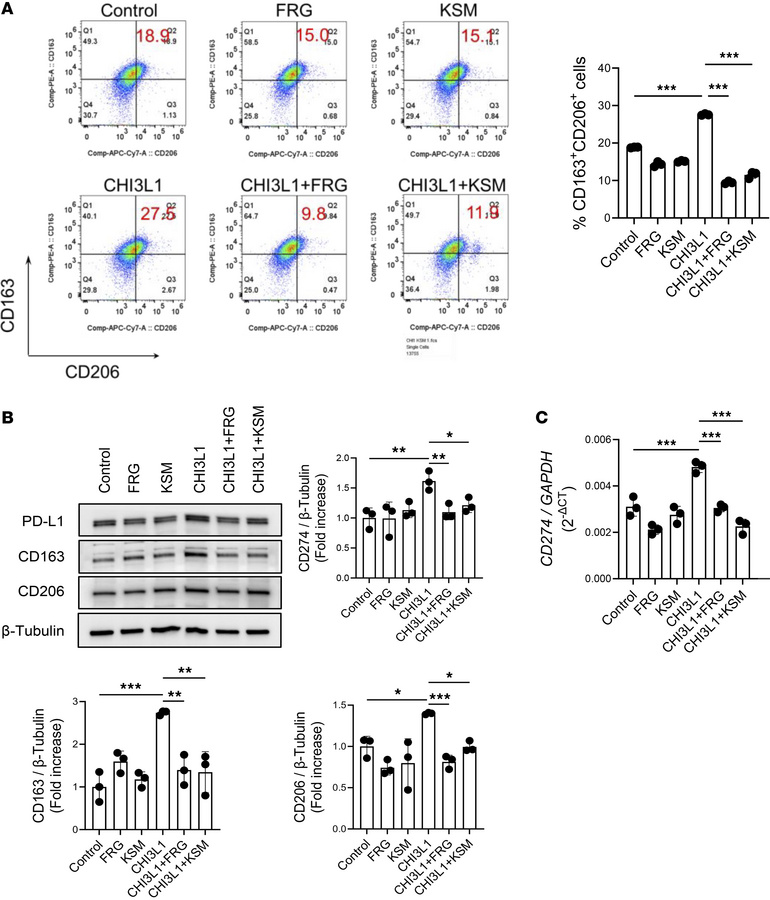

Figure 2

CHI3L1 drives M2 macrophage differentiation and PD-L1 expression.

Options: View larger image (or click on image) Download as PowerPoint
CHI3L1 drives M2 macrophage differentiation and PD-L1 expression.
Human ...
Human monocyte THP-1 cells were differentiated with PMA (100 ng/mL) for 24 hours, followed by 24 hours of rest and then stimulated with recombinant CHI3L1 (500 ng/mL) with or without anti-CHI3L1 antibody (FRG, 250 ng/mL) or kasugamycin (KSM, 250 ng/mL) for 24 hours. Expression of PD-L1, CD206, and CD163 was then evaluated. (A) Flow cytometry of the CD206+CD163+ M2 macrophages. (B) Western blot analysis of CD163, CD206, and PD-L1 protein expression. β-Tubulin was used as a loading control. (C) CD274 (PD-L1) mRNA expression measured by quantitative RT-PCR. The bar graphs in B represent densitometric quantification of Western blot signals; values in A–C represent the mean ± SEM. *P < 0.05; **P < 0.01; ***P < 0.001 by 1-way ANOVA followed by Šídák’s multiple-comparison test.
