Dll4 assembles the umbilical cord and placental vasculature
Derek C. Sung, Hana A. Ahanger, Sweta Narayan, Jesse A. Pace, Mei Chen, Jisheng Yang, Siqi Gao, T.C.S. Keller IV, Jenna Bockman, Xiaowen Chen, Erica Nguyen, Alan T. Tang, Patricia Mericko-Ishizuka, Ivan Maillard, Mark L. Kahn
Derek C. Sung, Hana A. Ahanger, Sweta Narayan, Jesse A. Pace, Mei Chen, Jisheng Yang, Siqi Gao, T.C.S. Keller IV, Jenna Bockman, Xiaowen Chen, Erica Nguyen, Alan T. Tang, Patricia Mericko-Ishizuka, Ivan Maillard, Mark L. Kahn
View: Text | PDF
Research Article Development Reproductive biology Vascular biology

Dll4 assembles the umbilical cord and placental vasculature

  • Text
  • PDF
Abstract

Proper development of the umbilical cord and placental vasculature is essential for embryonic development. While the allantois is known give rise to endothelial cells (ECs) within the placenta, whether the allantois gives rise to ECs in the umbilical cord is debated. Furthermore, a lack of genetic tools to study placental vascular development independent of the embryo proper has hindered robust investigation into the primary cause of vascular defects from early studies utilizing global KOs. In this study, we delineate the contribution of the allantois to the umbilical vessels and utilize a mouse genetic tool previously developed by our lab to revisit the role of Notch signaling during placental development. We show that the allantois has mosaic contribution to the umbilical endothelium with higher contributions closer to the placenta. Allantoic deletion of Dll4 disrupts umbilical cord and placental vascular formation with secondary defects in the heart. Lastly, we identify Unc5b downstream of Notch signaling that restricts EC migration while promoting chemokine signaling for vascular smooth muscle cell (vSMC) recruitment to arteries. These findings identify a genetic tool for investigating placental vascular development and give insights into the ontogeny and mechanisms of placental vascular and umbilical cord development.

Authors

Derek C. Sung, Hana A. Ahanger, Sweta Narayan, Jesse A. Pace, Mei Chen, Jisheng Yang, Siqi Gao, T.C.S. Keller IV, Jenna Bockman, Xiaowen Chen, Erica Nguyen, Alan T. Tang, Patricia Mericko-Ishizuka, Ivan Maillard, Mark L. Kahn

×

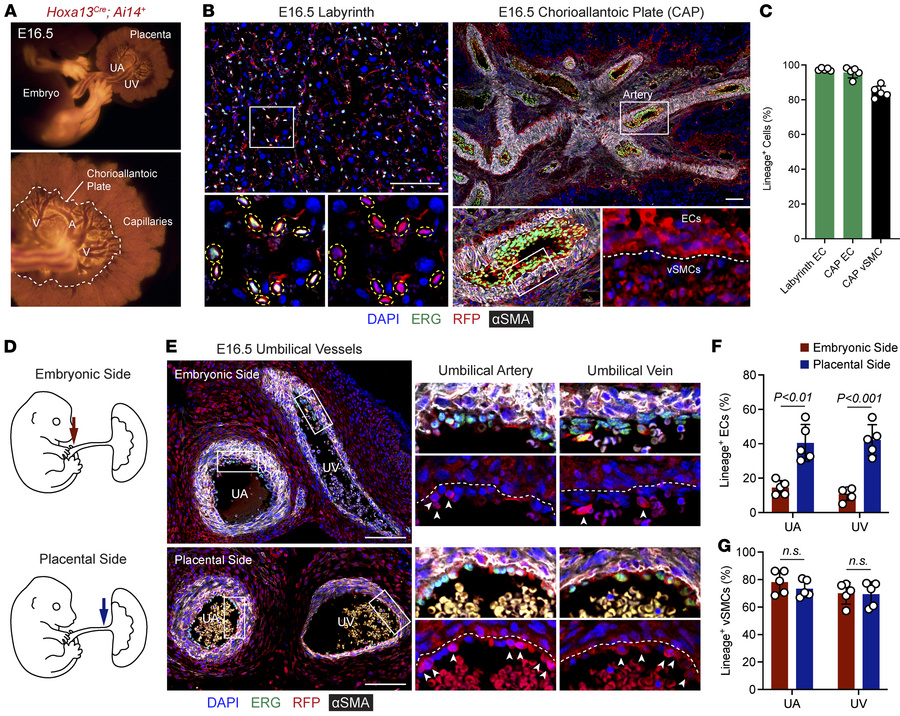

Figure 1

The allantois gives rise to endothelial cells in the umbilical cord and placenta.

Options: View larger image (or click on image) Download as PowerPoint
The allantois gives rise to endothelial cells in the umbilical cord and ...
(A) Wholemount imaging of E16.5 Hoxa13Cre;Ai14 embryo and placenta. (B) Immunofluorescence staining of E16.5 labyrinth capillaries and chorioallantoic plate (CAP) vessels for ERG (green), lineage/RFP (red), and αSMA (gray). Yellow dotted circles indicate lineage-positive (RFP+) ECs in the labyrinth. White dashed line demarcates endothelial cells (ECs) and vascular smooth muscle cells (vSMCs). Scale bars: 100 μm. (C) Quantification of lineage-positive (RFP+) ECs and vSMCs in the chorioallantoic plate (n = 5 placentas). (D) Schematic of regions of the umbilical cord near the embryo (red arrow) and placenta (blue arrow) subjected to immunofluorescence staining. (E) Immunofluorescence staining of E16.5 umbilical vessels for ERG (green), lineage/RFP (red), and αSMA (gray). Dotted line demarcates EC from vSMCs. UA, umbilical artery; UV, umbilical vein. Scale bars: 100 μm. (F and G) Quantification of lineage-positive (RFP+) ECs (F) and vSMCs (G) in the umbilical vessels in regions close to the embryo and placenta (n = 5 placentas). Data represent mean ± SD. An unpaired t test was performed for statistical analysis.
